There’s a reason every commercial airliner you’ve flown on has rounded windows. It’s not aesthetic. It’s not comfort. It’s survival. The shape of a window can mean the difference between structural integrity and catastrophic failure. And it’s just one of the dozens of invisible design choices built into the aircraft around you—each one engineered not for beauty, but for safety.
This article reveals the crash-prevention engineering hidden in plain sight—from the curve of your window to the slope of the fuselage. Because in aviation, nothing is left to chance. Every line, edge, and joint is deliberate. And behind every detail is a reason backed by physics, failure, and lessons learned.

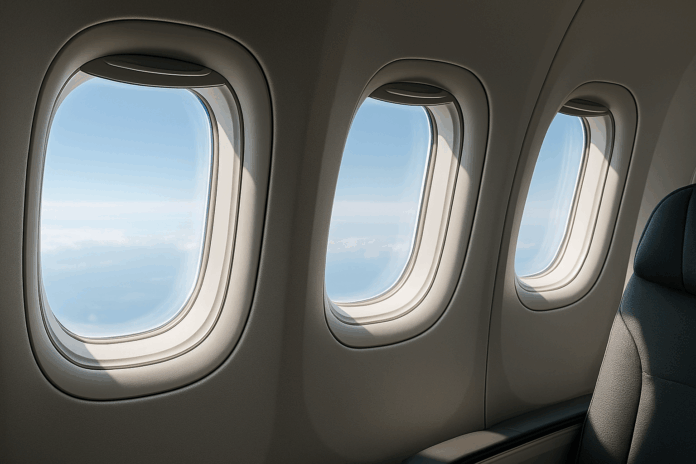

Why Windows Are Always Round — The Fatal Lesson
In the 1950s, the world’s first commercial jet airliner, the de Havilland Comet, was launched to great acclaim. It had square windows. And within a few years, multiple aircraft catastrophically disintegrated mid-air.
The cause? Metal fatigue from repeated pressurisation cycles. The square window corners created stress concentrations—tiny weak points where cracks began. With each flight, pressurisation flexed the fuselage like a balloon. Cracks spread. Until the aircraft failed.
Engineers went back to the drawing board. The solution was brutally simple: round the windows. Curved edges distribute stress evenly. They prevent weak points from forming. No corners, no cracks.
Since then, every commercial jet has used rounded, oval, or circular windows. Not for style—for survival.
The Pressurised Tube — And Why It’s Built to Flex
At cruising altitude, the cabin is a pressurised shell—effectively a giant soda can inflated from the inside. Outside, the air pressure is less than a quarter of what we breathe at sea level. Inside, it’s kept at a comfortable, breathable level using bleed air from the engines.
This means that with every flight, the fuselage expands slightly during pressurisation, and contracts again during descent. Multiply this by tens of thousands of flights, and you have a material fatigue challenge.
That’s why the fuselage isn’t rigid—it’s designed to flex. Aircraft skin panels are fastened with overlapping joints and tensioned to move with expansion. The frame absorbs these cycles like a lung inflating and deflating. Materials are chosen for elasticity, crack resistance, and fatigue endurance.
Your aircraft is designed to breathe—without breaking.
Fail-Safe Structures: Why Planes Are Built to Survive Damage
Commercial aircraft are built with structural redundancy at every level. That means no single crack, failure, or damage point should bring the aircraft down. Everything is compartmentalised.
The fuselage is built with stringers (longitudinal beams), frames (circular supports), and skin panels. If one panel develops a crack, the surrounding structure carries the load. It doesn’t spread. It’s called “fail-safe design.”
Even the windows are designed this way. Each window is made of multiple acrylic layers. If the inner pane cracks (which has happened before), the outer layers maintain pressure. There’s no explosive decompression. No structural failure. Just a maintenance issue.
This concept is applied throughout the airframe—from wings to landing gear doors. Damage may be inconvenient. But it’s rarely critical.
Why The Nose Is Rounded — Not Pointed
It may look sleek, but the rounded nose cone of a jet isn’t about aerodynamics alone—it’s also a crash prevention strategy.
A sharp or pointed nose would cause excessive pressure concentration on impact, increasing the risk of structural breach or cockpit penetration in the rare event of a runway overrun or hard landing.
The rounded nose diffuses energy more evenly and helps deflect debris. It also houses the radar and must remain electromagnetically transparent—hence the use of fibreglass composite materials instead of metal.
And in extreme cases like bird strikes, the rounded shape helps absorb and disperse impact energy rather than tearing through.
Every curve has a reason.
Wing Flex: Why Wings Can Bend Almost Vertically Without Breaking
The average passenger is unsettled to see the wings bouncing or flexing during turbulence. But that flexibility is a core part of the aircraft’s crash-prevention design.
Aircraft wings are engineered to flex upward by several metres under heavy loads. In lab testing, they are often bent up to 150% of their maximum expected load—sometimes almost vertically—before structural failure.
Why?
Because a rigid wing would crack or shear under stress. A flexible wing absorbs turbulence. It bends instead of breaks. The materials used—especially in modern composite wings like those on the Boeing 787 or Airbus A350—are chosen for high fatigue resistance and load-bearing elasticity.
The more the wing flexes, the safer it is.
Crash-Resistant Seats and Layout Design
Even your seat layout is part of crash prevention. Aircraft interiors must be shown to allow for full evacuation in 90 seconds using only half the available exits. That’s not guesswork—it’s demonstrated in real-time simulations with human volunteers.
Seats themselves are engineered to withstand forces up to 16g in forward crash scenarios. They’re anchored to the strongest points of the fuselage and absorb deceleration energy to reduce spinal injuries.
Seat spacing, tray table position, and overhead bin locking mechanisms all serve to prevent injuries in hard landings or sudden stops.
You’re not sitting in furniture. You’re sitting in a survival system.
Controlled Deformation: Why Aircraft Don’t Shatter
One of the biggest misunderstandings about aircraft is that they’re fragile. In fact, they’re designed to deform—not shatter.
In the event of a crash or overrun, landing gear are designed to shear off in a controlled way—absorbing energy. Wings are designed with fuel tanks placed inboard, away from the tips, and protected by the gear structure. Even the engine pylons are built to break away to prevent wing rupture.
This principle is similar to how cars crumple in a crash. The idea is to sacrifice less critical components to save the core—especially the cabin where passengers sit.
That’s why in many crash investigations, the fuselage remains largely intact—even when other parts separate.
The Role of Paint, Rivets, and Panel Lines
Even seemingly cosmetic elements like paint, rivets, and skin panel patterns play a role in aircraft safety.
Paint must be lightweight, UV-resistant, and flexible. Too thick, and it adds weight or cracks under flexing. Too brittle, and it allows corrosion underneath. Every layer is applied and measured with precision.
Rivets must maintain load integrity even when a nearby one fails. They’re spaced and patterned to prevent shear failure and stress propagation.
Panel lines—the seams you see along the fuselage—are strategically placed to absorb expansion and allow for inspection. Engineers monitor these lines for microscopic fatigue or movement.
Even the tiniest dot on your plane was placed there for a reason.
Crash Lessons Embedded in Design
Every major aircraft disaster in aviation history has left a legacy—not just in policy, but in physical design.
The Tenerife disaster (1977) influenced cockpit communication protocols and runway markings.
The Comet crashes led to rounded windows and fatigue monitoring.
The Sioux City DC-10 (1989) led to changes in hydraulic redundancy and crew response.
The Boeing 737 rudder incidents led to redesigns of control valve systems and yaw dampers.
And these aren’t just minor updates. Each one leads to decades of research, simulations, redesigns, and re-certification. The modern aircraft you sit in is a flying archive of past mistakes—corrected, reinforced, and reengineered into every detail.
Conclusion: Safety You Can’t See
Aircraft don’t rely on luck. They rely on design.
Rounded windows, bending wings, layered glass, and flexible joints aren’t aesthetic choices—they’re invisible armour. They’re built from physics, experience, and an uncompromising standard of what must never fail.
You won’t notice these things. You’re not supposed to. But they’re working around you, every second you’re in the air.
Every curve, every panel, every flex of metal is quietly saying: “Even if something goes wrong… I’ve been built not to.”
That’s what real safety looks like.
